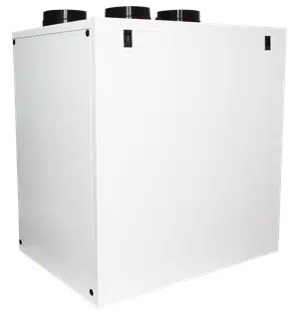

Elta HAVA 550V Vertically Mounted Mechanical Ventilation with Heat Recovery Unit

A continuously running Mechanical Ventilation with Heat Recovery (MVHR) unit simultaneously extracting air from ‘wet’ rooms while supplying fresh, filtered air to the ‘habitable’ rooms in a dwelling.

• Helps tackle the causes of condensation and mould.
• Supplied with a multi-function LCD Display control panel for control and convenience.
• Very low running costs and saves on heating costs through thermal recovery.
• PCDB and SAP Q listed, ensuring product performance is accurately recorded underpinning compliance with Building Regulations.

Features and Benefits:

• Easy to install due to the included fixing brackets for wall mounting with configurable left or right duct connections from and to outside for simpler duct runs.
• Quick change ISO Coarse 60% (G4) filters easily removable for cleaning. ISO ePM1 60% filter (F7) on request.
• Automatic anti-frost protection to prevent frost building up on the exhaust side of the heat exchanger.
• Integral automatic bypass for free cooling during the summer season with two drainage holes to meet climate requirements.
• Simplified electric wiring due to being supplied pre-cabled for easy connection with Remote multifunctional controller (image below). Suitable for wall installation and provided with touch buttons to select functions and LCD Display for monitoring of the operation and alarms of the unit.

Performance Data:

Airflow L/s max                                                    153

Power W max                                                      333

Lp dB(A) @3m+                                                     34

Ambient Temperature °C max                       40
